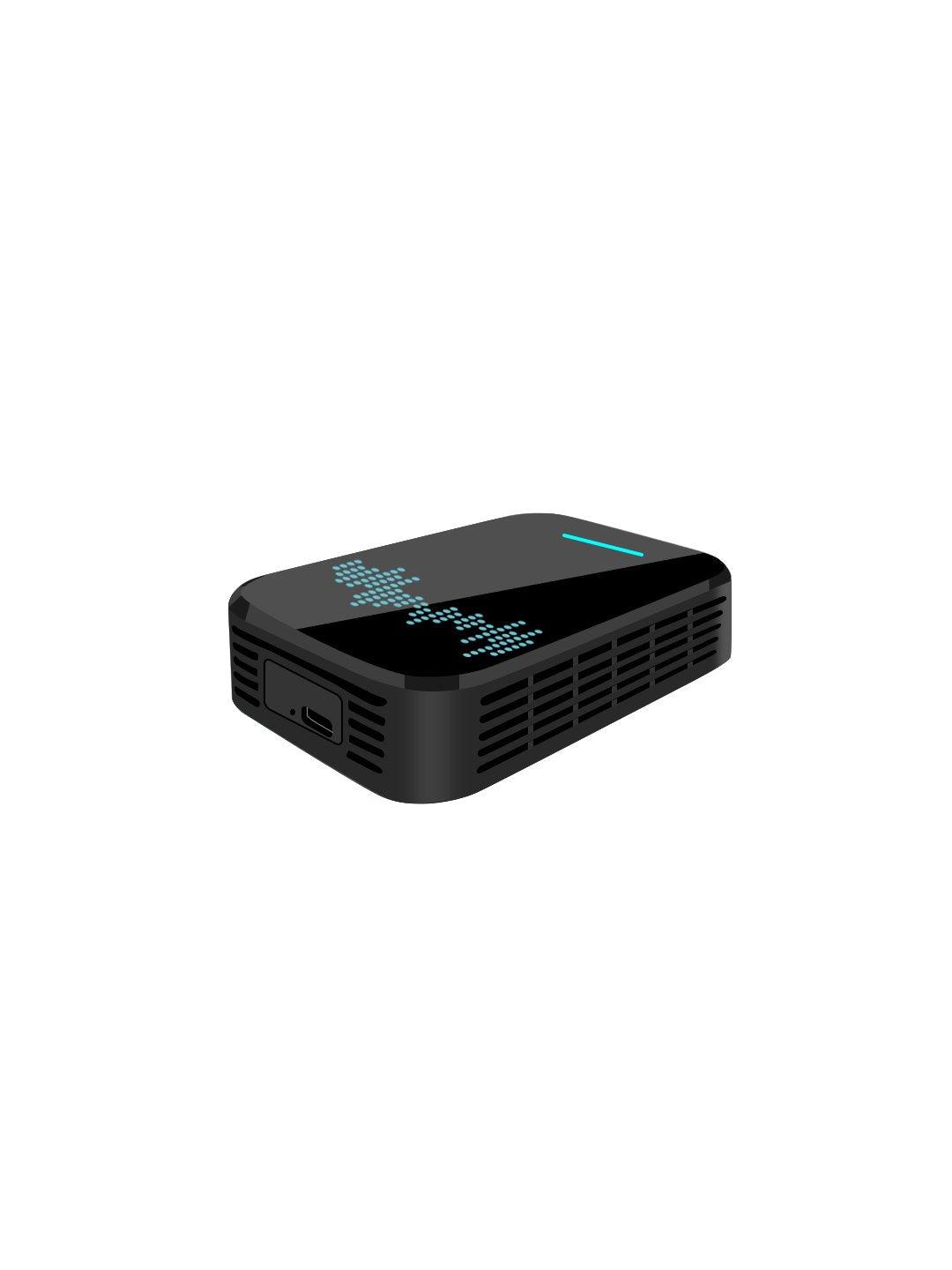

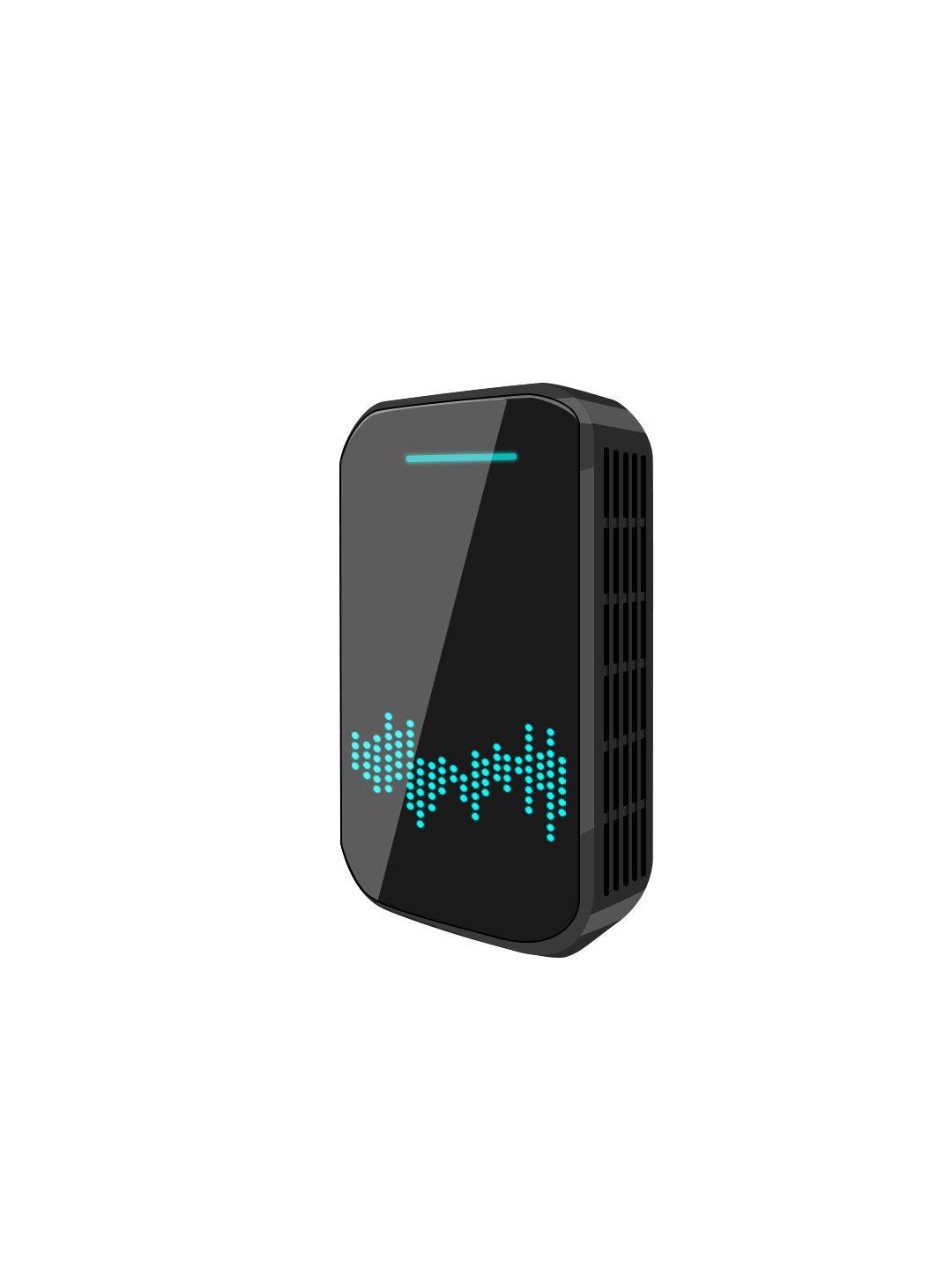

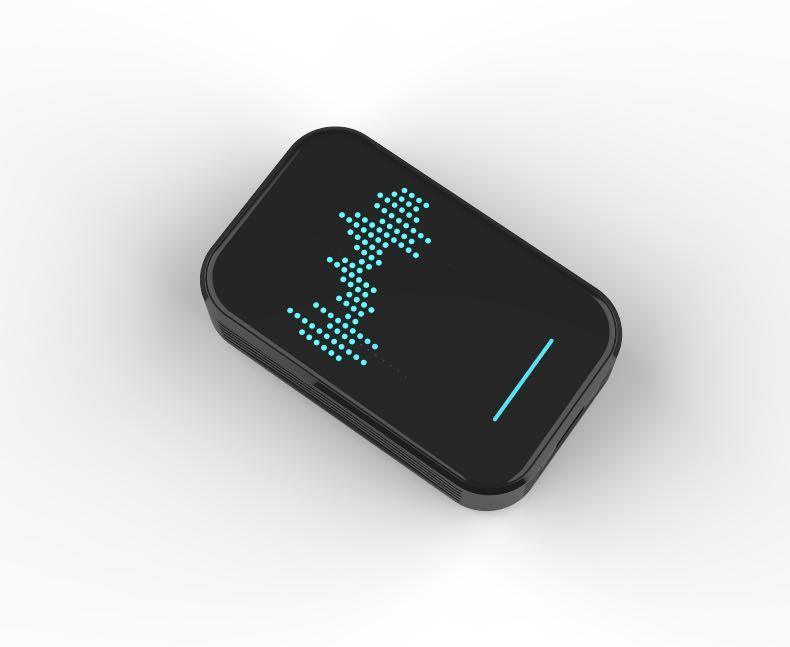

Car Radio Wireless Carplay box Android 9.0 Android Auto Media Tv Box

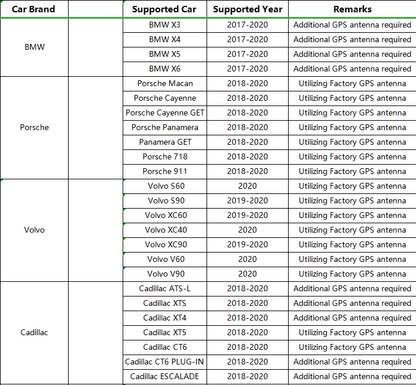

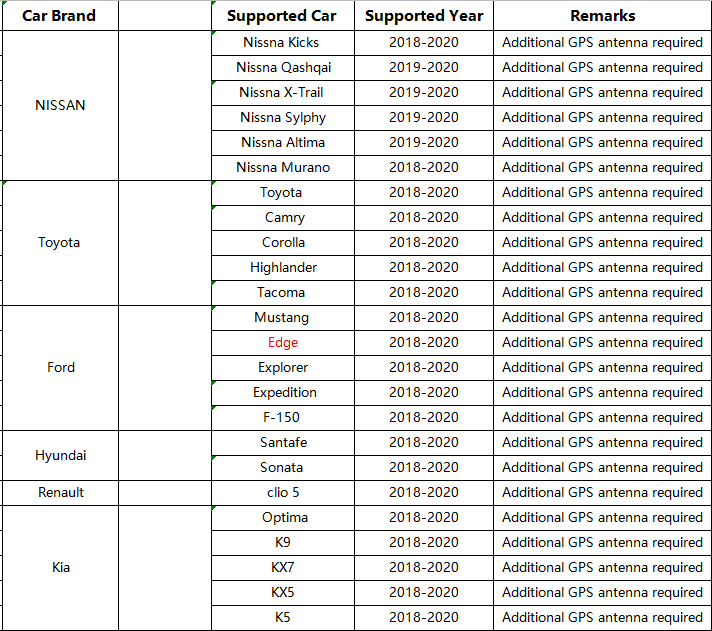

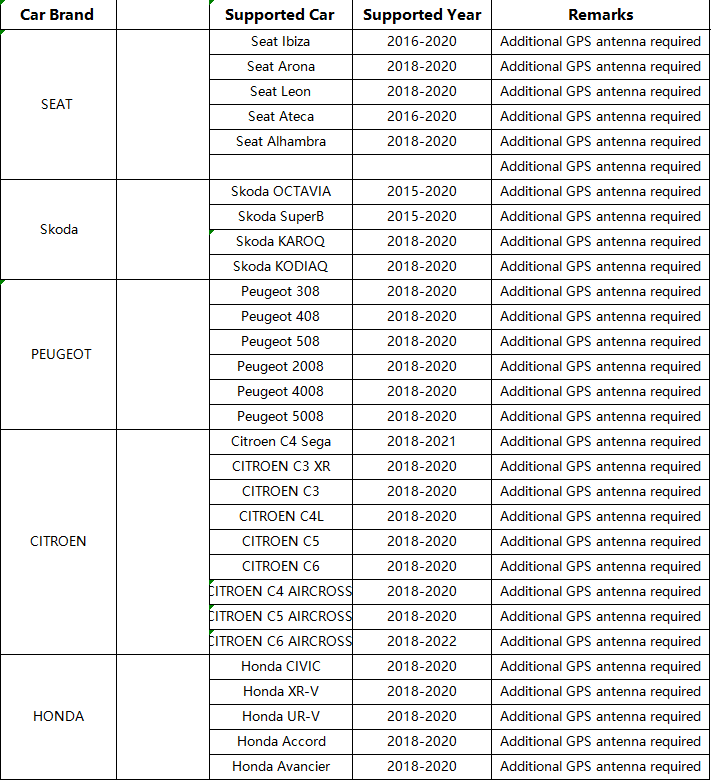

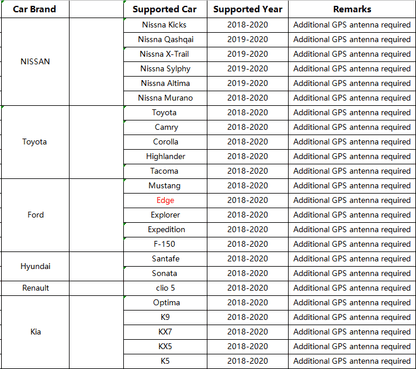

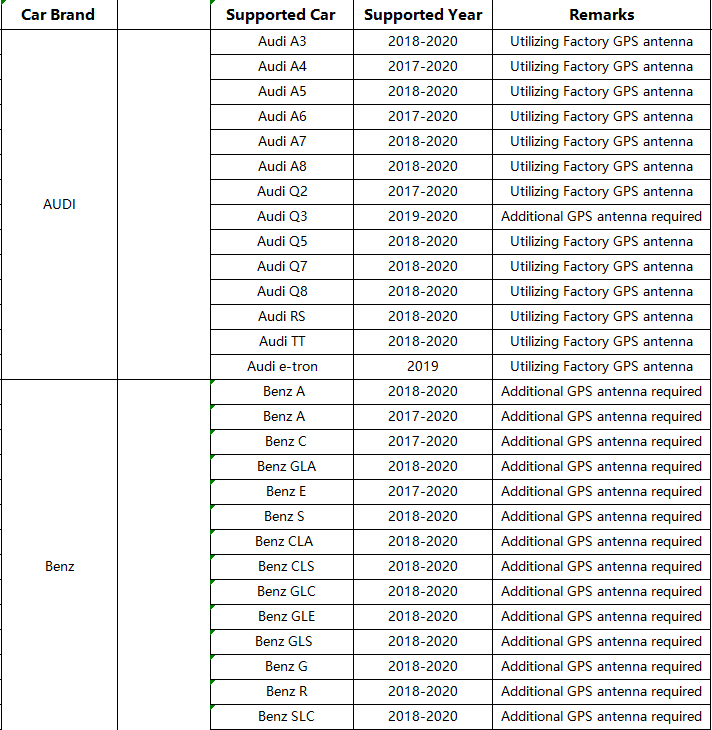

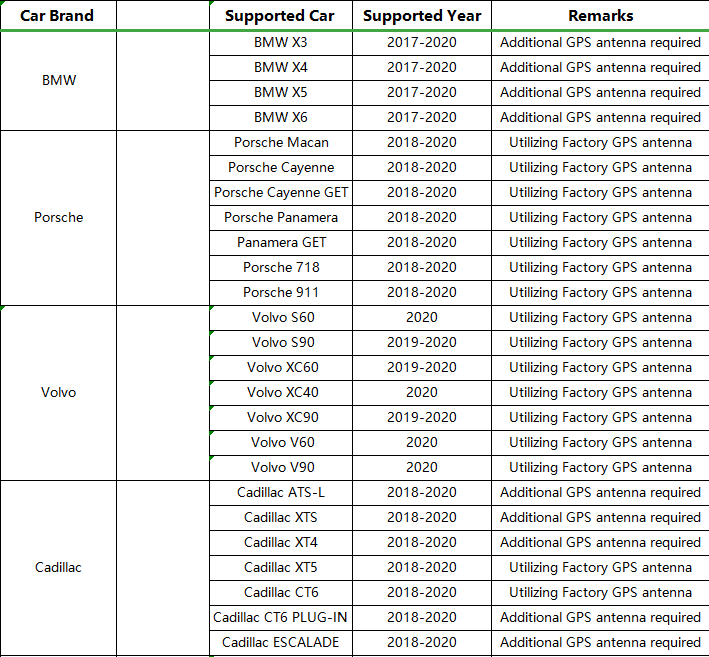

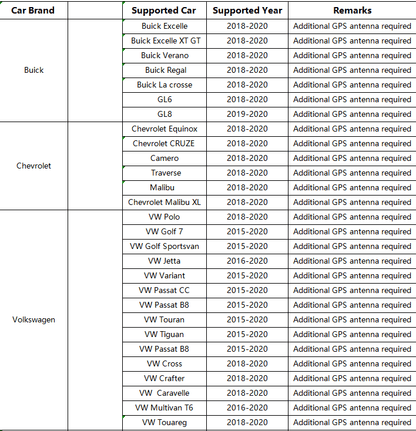

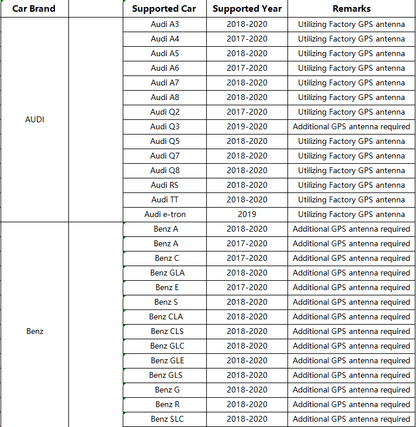

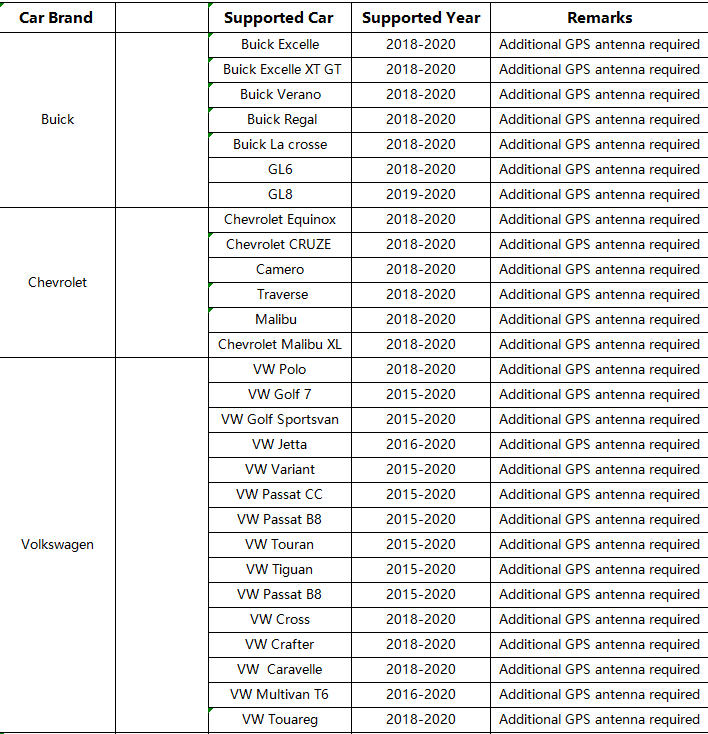

Compatibility:
- VW/Ford/Peugeot/Nissan/Honda/Toyota/Susuki//Cadillac/Buick/Chevrolet /Land Rover /Lexus/Hyundai/ Kia, etc
- *Vehicle must be equipped with factory Carplay® system
- **CP box could applicate for any vehicles with Carplay, and not limit to the list .
- **Each country/region might have varies
- If your original car center control is not touch screen, please buy one with remote control
1.Hardware | ||
Content | Specification | |
CPU | AllWinner H6, 4core,Cortex- A53 ,Processor1.8GHz | |
GPU | MaliT720 | |
RAM | 2GB DDR3 /4GB | |
NAND FLASH | 32 GB | |
Dispaly way | Factory radio Display | |
External I/O Port | USB | |
Bluetooth Module | DDBT010_B | |
WiFi Module | IEEE 802.11b\g\n 2.4GHz | |
GPS Module | HD1010(GPS+ BDS) | |
Port | 1、LED light | |
2、TYPE-C connector | ||
3、USB connector | ||
4、BOOT button |
2. System | ||
Content | Function | |
System | Android 9.0 | |
Support screen resolution | 800*480、1280*720,1920*1080 (Auto-Detect) | |
Connection protocol | Factory Car USB port | |
Touch konb control | Support left and right rotation, toggle knob logic up and down, left and right, quick operation protocol | |
Strerring wheel control | Support audio playback, switch up and down track control, adjust volume, and control OSD operation. Control CP box to carplay@ voice logic | |
UI | Built-in multiple UI themes; support customization | |
Function installed | Wi-Fi , Settings, Bluetooth, Google Maps, Offline Maps, USB Drive for media, Screen Casting, File Explorer, Google Assistant, YouTube, Google Play Store (Any apps avaliable in Google Play Store) | |
Other apps |
The third-party application does not support the factory car knob control. After entering the application, it supports analog mouse (hovering ball) for application control; |
3.Main Functions | ||
Function | Details | |
Network | Wi-Fi | Connect the Carplay Box to Wi-Fi Hotspot |
1. If the vehicle has touch screen, connect any hotspot show on the device , then enter Wi-Fi password to connect; 2. If the vehicle is non-touch screen, suggest the user revise the Hot Spot password to 12345678 first, then connect CP box to hotspot for auto connection |
||
Input | Input | Google Input |
Media | USB Drive | Support mp4、MKV,RMVB,AVI format |
Support WAV、AAC、WMA、AMR、MP3、FLAC aduio format | ||
Cast Screen (Android) | Cast Screen (Android) | Support wireless mirroring of Iphone, Support wireless mirroring of mainstream Android mobile phones |
Screen Mirroring (iOS) | Screen Mirroring (iOS) | Supports iOS YouTube cast screen and Android/iOS mobile devices |
APP | APP Installation | User installation freely |
Setting | View help | Scan the code to view the tutorial, support all applications to scan the QR code to enter (FAQ description-English content) |
General settings | Clear cache | |
Language settings | Default English | |
Version upgrade | By USB | |
Reset | Can be restored to the factory system | |
Factory mode | Controllable application icon: Google Play (user-installed software supports deletion) | |
Bluetooth | Bluetooth phone | Make/Answer calls |
Bluetooth music | Music | |
Other APP | Note: Factory knob support depends on the third-party software. Some APPS may not be supported. | |
Google Map | Support | |
Google Play Store | Support | |
YouTube | Support | |
Browser | Support | |
Voice Contol | Support Google Assistant | |
Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the Car Radio Wireless Carplay box Android 9.0 Android Auto Media Tv Box.
